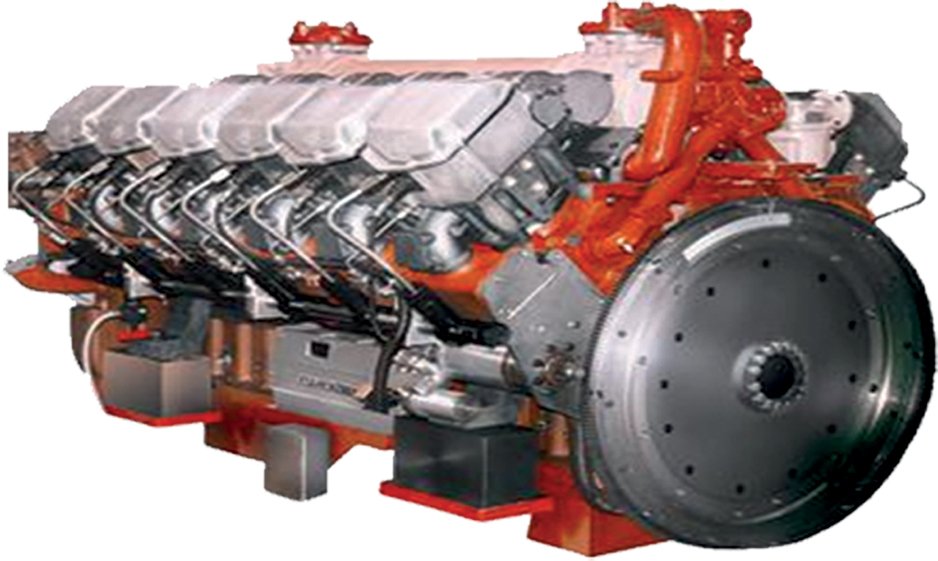

Marine Diesel Engine D87
The D87 is a 12-cylinder, 90° V-configuration marine diesel engine with a common-rail injection system (up to 1600 bar), twin turbochargers and intercoolers, and a smart engine-management system. Designed for railway, power-generation and marine use, it is offered in two ratings with output up to 1000 kW.
Information
Video
3D View
Prefer to order directly? Contact us:
No. of cylinders 12
Engine shape V-shape, 90°
Fuel injection Common rail (max 1600 bar)
Filtration 3 µm main + 10 µm pre-filter & dehumidifier
Turbocharging 2 turbochargers + 2 intercoolers
Management Smart engine management system
Cooling Air radiators with pre-heating
Lubrication Pre-lubrication, oil sump (rail application)
Start Electric
Applications Railway, power generation, marine
Speed 1300 / 1500 rpm
Power 720 / 1000 kW
Rotation direction CW / CW & CCW
Torque 5290 / 6366 N·m
Cylinder bore 150 mm
Piston stroke 180 mm
Compression ratio 15:1
BMEP 17.4 / 21 bar
Total displacement 280 L
Fuel specification DIN-EN 590
Mass/power ratio 5.4 / 3.9 kg/kW
Exhaust gas temperature 550 (max) °C
Length × Width × Height 2372×1420×1356 mm
