Marine Diesel Genset BMI G110
The BMI G110 marine diesel genset supplies electrical power for a variety of vessels. Built around an OM 355 LA six-cylinder engine driving a Stamford alternator, it is designed for hot climates, supports automatic or manual paralleling and features a monitoring panel and frequency control. Standby output reaches up to 156 kVA (125 kW).
Information
Video
3D View
Prefer to order directly? Contact us:
Engine designation OM 355 LA
Cylinders 6 in line
Bore 128 mm
Stroke 150 mm
Displacement 11.5 L
Compression ratio 16.8:1
Injection system Injection pump
Cooling Air & sea-water cooling
Type Stamford UCI274G, single bearing, 3-phase
Power factor cos φ 0.8
Voltage (adjustable) 220 / 380 V
Frequency (adjustable) 50 / 60 Hz
Insulation class H
Protection IP23
Standby power @ 1500 / 1800 rpm 138 (110) / 156 (125) kVA (kW)
Prime power @ 1500 / 1800 rpm 125 (100) / 140 (112) kVA (kW)
Weight 2100 kg

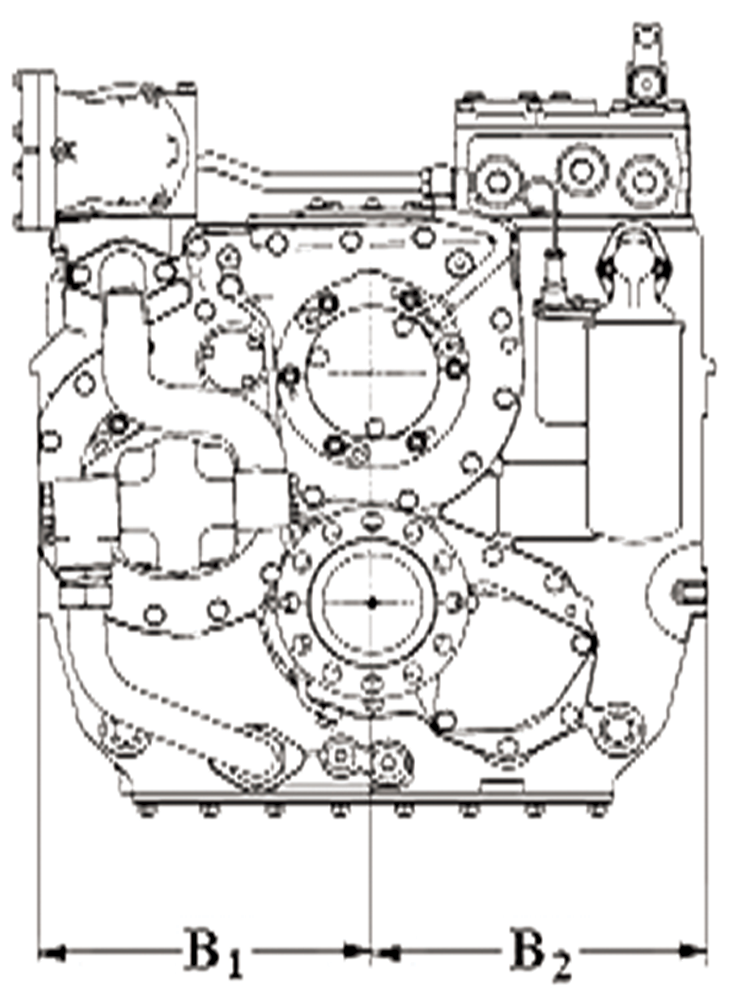

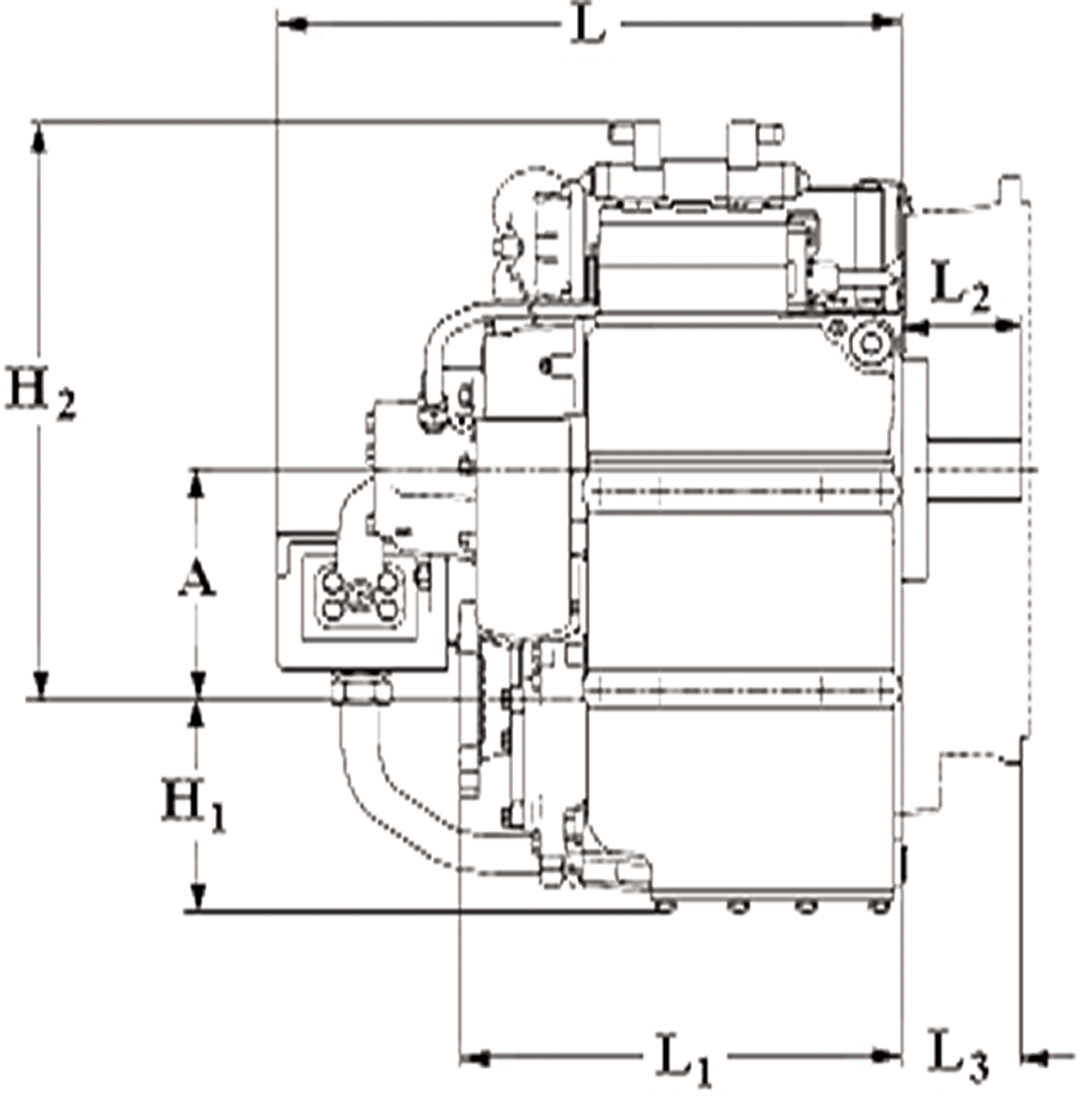

Dimensions L 248 × W 120 × H 156 cm
