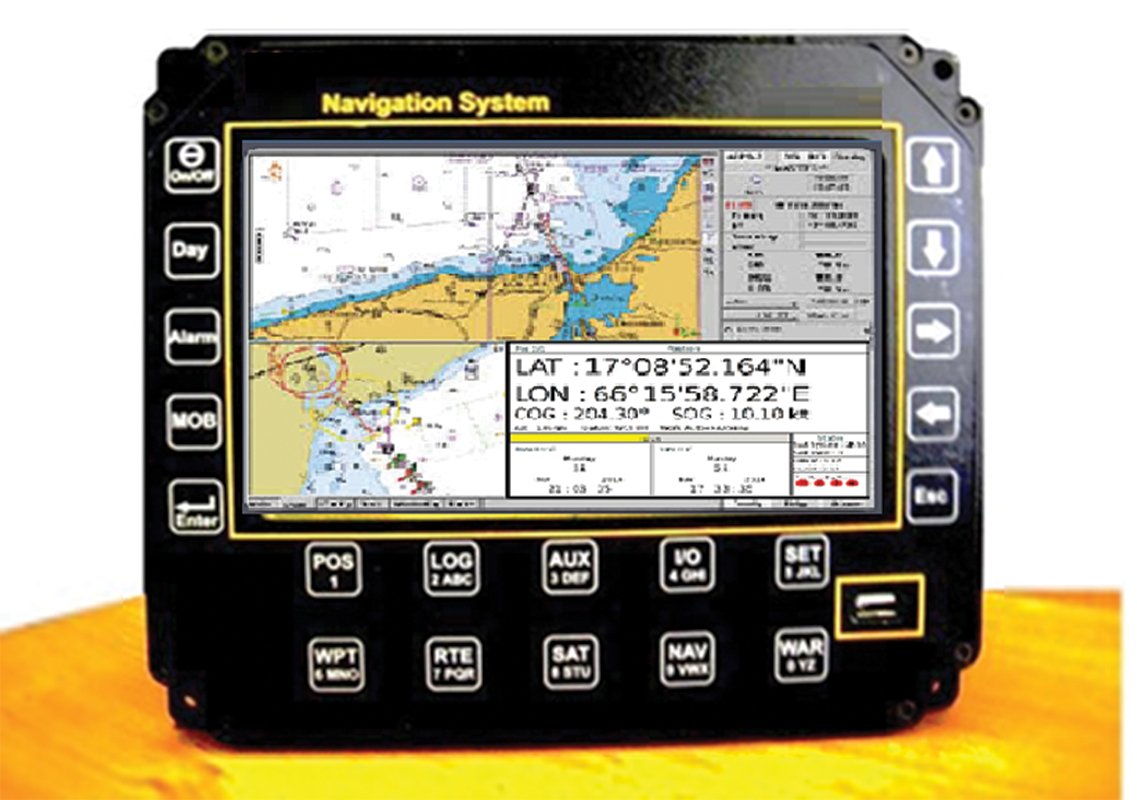

Satellite Navigation System
The GPS 2102 / GPS 3203 satellite navigation system provides high-precision positioning via a GNSS card connected to the GPS and GLONASS satellite systems. It measures and computes course over ground, speed over ground and other parameters with high accuracy, and is convenient for patrol cars and ships. The GPS 3203 is equipped with DGPS.
Information
Video
3D View
Prefer to order directly? Contact us:
Model GPS-3203 / GPS-2102
Position accuracy < 0.5 m (with DGPS) / < 5 m (all conditions)
Channels in work 24 (satellites in use)
Max. speed calculated 500 m/s (full accuracy)
Update rate 5 Hz
Serial com ports 4× RS422 (selectable config)
Data output NMEA 0183
Start-up time 30 s (warm-up)
Re-acquisition time < 2 s
Shock 30 g in 6 ms (operating)
Vibration 1–13.5 Hz 1 mm; 13.5–100 Hz 0.7 g (IEC60945)
Operating temperature -10 to +55 °C
Humidity 95% RH at +40 °C (non-condensing)
