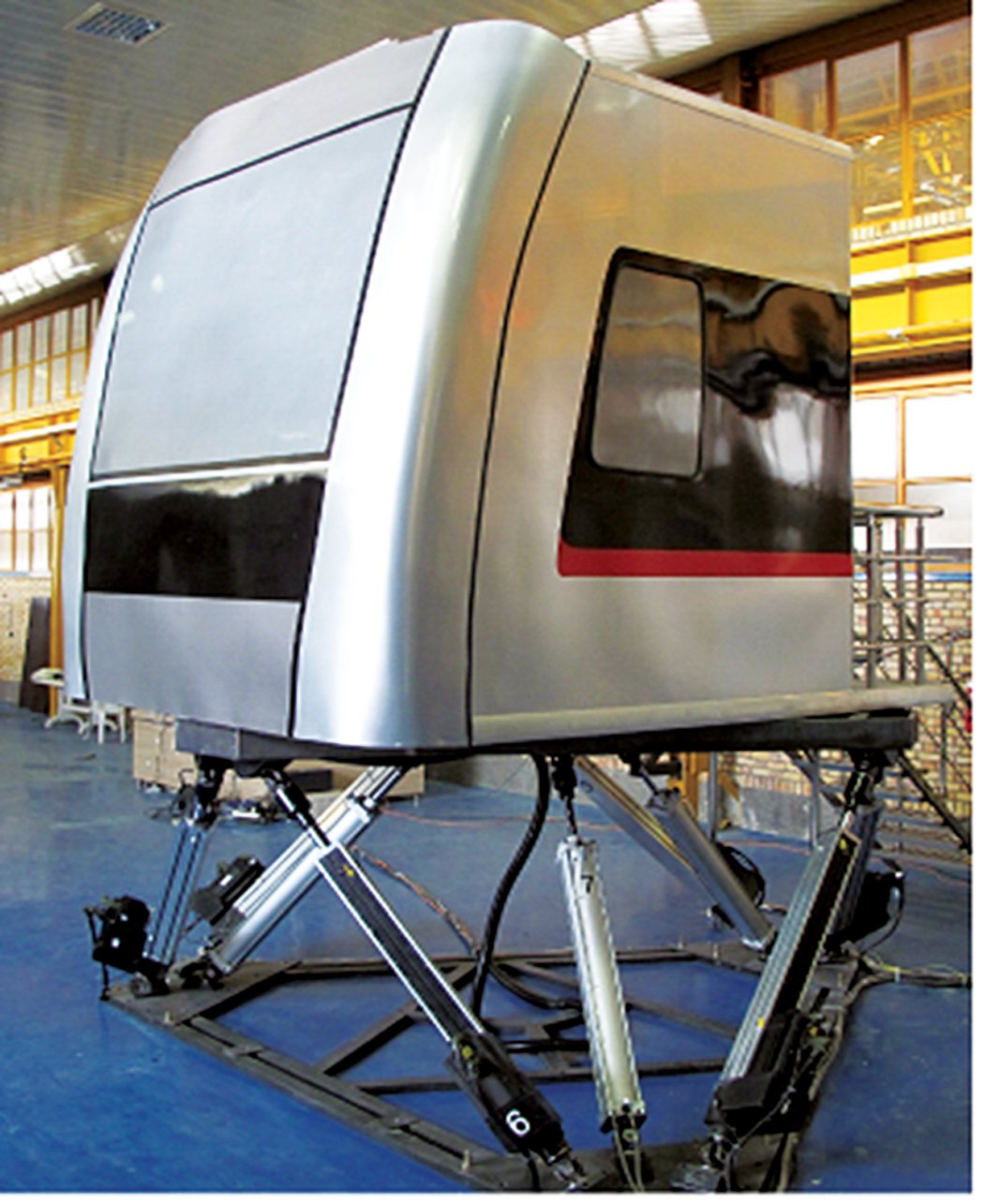

6DoF Motion Platform
This 6DoF motion platform can move in all angular and linear directions and can be used in different types of simulators and stabilizers such as ships, light and heavy vehicles, tanks, trains and various aircraft.
Information
Video
3D View
Prefer to order directly? Contact us:
Surge Limit 0.40 / -0.30 m, velocity ±0.8 m/s, accel. ±0.65 g
Sway Limit ±0.320 m, velocity ±0.8 m/s, accel. ±0.60 g
Heave Limit 0.260 / -0.240 m, velocity ±0.6 m/s, accel. ±0.60 g
Roll Limit ±16.5°, velocity ±40°/s, accel. ±300°/s²
Pitch Limit 15.5 / -16.0°, velocity ±40°/s, accel. ±300°/s²
Yaw Limit ±20°, velocity ±50°/s, accel. ±350°/s²
Payload 500–5000 kg
